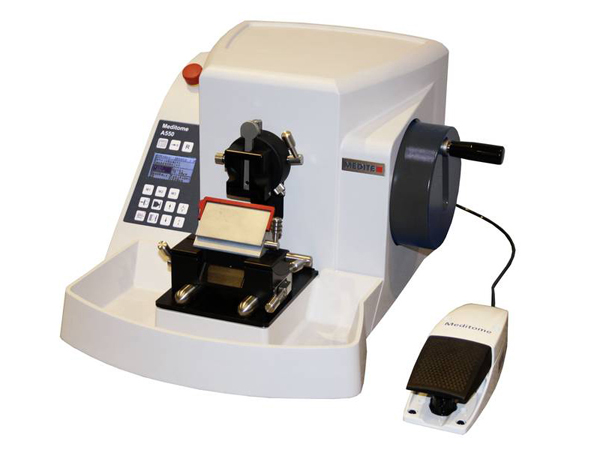

Automatic rotary slicer A550

Slice thickness setting range:0 .25μm to 50μm

Technical parameters:

Slice thickness setting: 0.25μm—5.0μm With the progressive 0.25μm  5.0μm—10.0μm With the progressive 0.5μm 10.0μm—50μm With the progressive 1μm

1μm trim thickness setting range: 1μm -- 500μm

Trimming thickness setting: 1μm—20μm With the progressive 1μm   20μm—100μm With the progressive 5μm

100μm—500μm With the progressive 10μm

Slice speed range: 0—400mm/s

Horizontal shift: 30mm

Vertical sample distance: 68mm

Slice mode: 5 types: manual, continuous, single mode, permanent mode, stepping

Size includes tray (width / depth / height): 530 x 430 x 310 mm

Weight: 38 kg

Power supply: 100-240 V / 50/60 Hz
