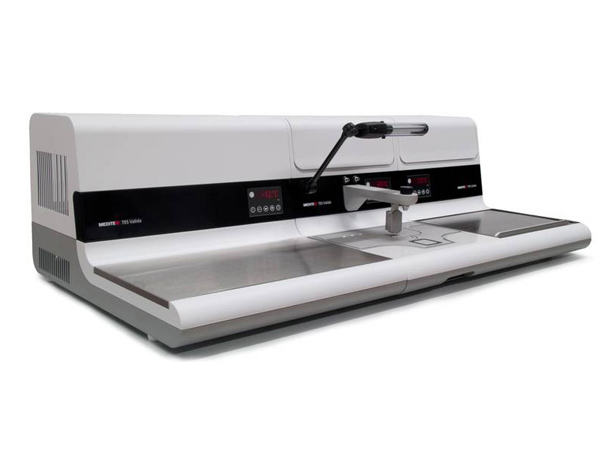

Efficient paraffin embedding system TES Valida

1.Germany imported

2.For tissue paraffin embedding

3.Includes operating menu and microcomputer control system to set working time and temperature

4.The temperature of the molten wax bath, the heat preservation tray, the embedded mold preheating chamber, and the work surface can be individually adjusted.

Embedding station components:

Melting wax tank capacity: 4.6 L

Melting wax tank, countertop temperature:30 - 70℃

Embedding table is equipped with LED lighting

Timer can preset power switch

Paraffin drainage drainage device is set up for easy cleaning of paraffin

Optional 4 diopter magnifier

Organization slot capacity: 360 mm/600 mm/332 mm

Weight: 25 kg

Power supply: 230V

Cold table components:

Cold table surface can accommodate embedded modules: 100

Cold table temperature:-15℃ - +15℃

Organization slot capacity: 500 mm/600 mm/332 mm

Weight: 30 kg

Power supply: 230V

Hot table components:

Embedding mold preheating chamber temperature: 30 - 70℃

Insulation plate temperature: 30 - 75℃

Organization slot capacity:300 tissue boxes

Embedding mode capacity: 200 tissue boxes

Length / width / height:360 mm/600 mm/332 mm

Weight: 15 kg

Power supply: 230V
